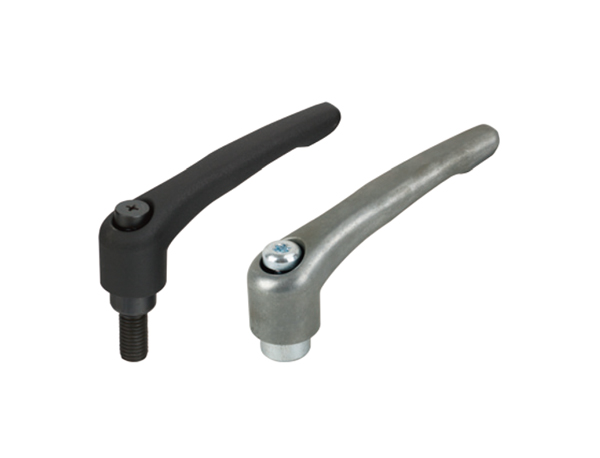

Product Name: Adjustable Handles Model Number: HY8310.12-6 Brand Name: Huayang Executive Standard: Material: （Handle）Zinc alloy,（ Threaded stud ） Steel Surfaced Process: Handle（ Black,natural,red,orange or silver） Place of Origin: Zhejiang, China (Mainland)
Product specification

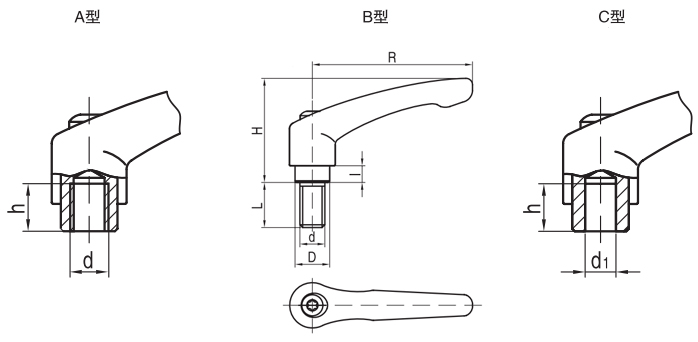

Drawing
Parameter Size
| Item No. | Main dimensions | Mounting hole | Threaded stud | |||||||
| Type A | Type B | Type C | R | H | D | d | d₁ | h | I | L |
| HY8310.12-6\AM6x40 | HY8310.12-6\BM6x40xL | HY8310.12-6\C6x40 | 40 | 33.5 | 9.8 | M6 | 6 | 8 | 6.5 | 16、20、25、32、40 |
| HY8310.12-6\AM8x65 | HY8310.12-6\BM8x65xL | HY8310.12-6\C8x65 | 65 | 43 | 13 | M8 | 8 | 10 | 8.5 | 20、25、32、40、50 |
| HY8310.12-6\AM10x85 | HY8310.12-6\BM10x85xL | HY8310.12-6\C10x85 | 85 | 53 | 15.5 | M10 | 10 | 12 | 8.5 | 20、25、32、40、50 |
| HY8310.12-6\AM12x95 | HY8310.12-6\BM12x95xL | HY8310.12-6\C12x95 | 95 | 63.5 | 18 | M12 | 12 | 15 | 10 | 25、32、40、50、63 |
