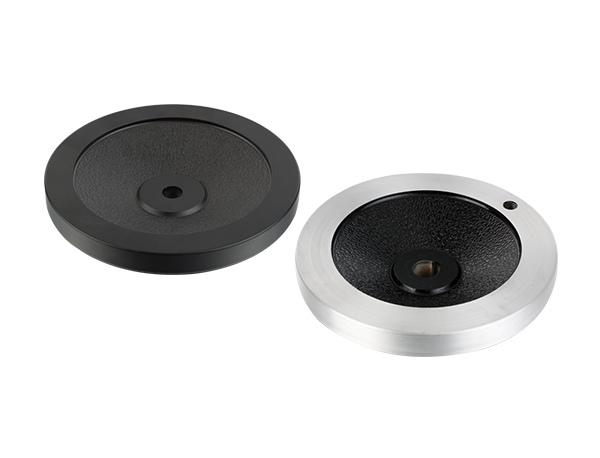

Product Name: Solid Handwheels With Revolving Handle Model Number: HY8313.21 Brand Name: Huayang Executive Standard: Material: (Handwheel) Aluminum alloy、(Handle) Plastic Surfaced Process: Black Place of Origin: Zhejiang, China (Mainland)
Product specification
Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | ||||||
| Type A | Type B | D | H | B | L₁ | L ₂ | d | h |
| HY8313.21\A16x160 | HY8313.21\B16x160 | 160 | 40 | 18 | 80 | 16 | 16 | 20 |
| HY8313.21\A18x200 | HY8313.21\B18x200 | 200 | 45 | 20 | 80 | 18 | 18 | 25 |
