Product Name: Spoked Handwheels With Revolving Handle Model Number: HY8313.25 Brand Name: Huayang Executive Standard: Material: (Handwheel) Cast iron、(Handle) Steel Surfaced Process: Sand-blasted chrome bright Place of Origin: Zhejiang, China (Mainland)
Product specification

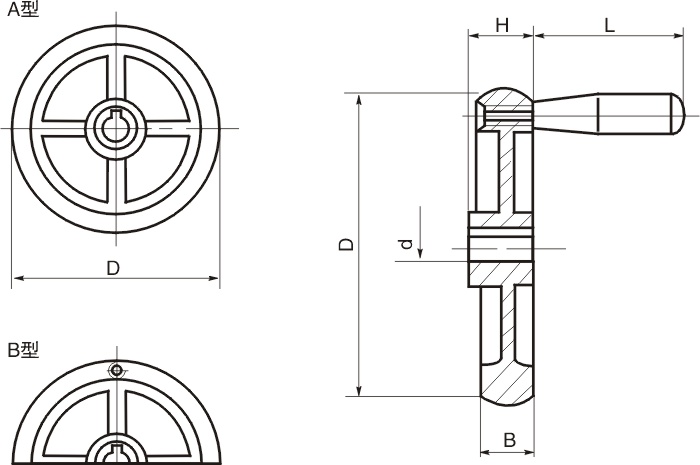

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | ||||
| Type A | Type B | D | B | L | d | h |
| HY8313.25\A16x152 | HY8313.25\B16x152 | 152 | 19 | 80 | 16 | 35 |
| HY8313.25\A18x200 | HY8313.25\B18x200 | 200 | 20 | 80 | 18 | 35 |
