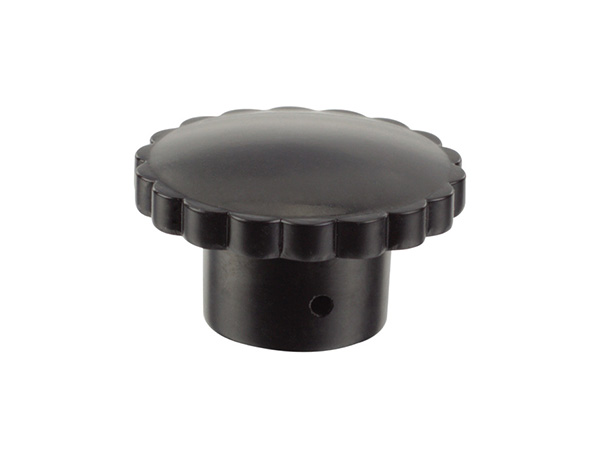

Product Name: Knurled Knobs Model Number: HY8314.2 Brand Name: Huayang Executive Standard: JB\T 7274.2-94 (GB4141.27-84) Material: Knob （Bakelite） 、Metal insert （Steel ） Surfaced Process: Black Place of Origin: Zhejiang, China (Mainland)
Product specification
Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | |||||
| Type A | Type B | D | H | d | d₁ | h | d₂ |
| HY8314.2\A6x25 | HY8314.2\BM6x25 | 25 | 16 | 6 | M6 | 10 | 2 |
| HY8314.2\A8x32 | HY8314.2\BM8x32 | 32 | 18 | 8 | M8 | 12 | 3 |
| HY8314.2\A10x40 | HY8314.2\BM10x40 | 40 | 20 | 10 | M10 | 14 | 3 |
| HY8314.2\A12x50 | HY8314.2\BM12x50 | 50 | 25 | 12 | M12 | 16 | 3 |
