Product Name: Pipe Joints Model Number: HY8318.33 Brand Name: Huayang Executive Standard: Material: Brass Surfaced Process: Place of Origin: Zhejiang, China (Mainland)
Product specification

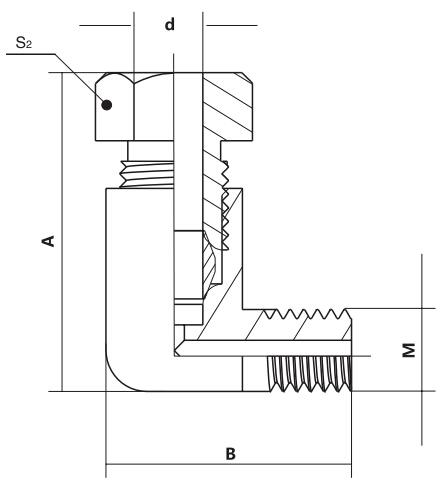

Structure diagram
Parameter Size
| Item No. | Main dimensions | ||||
| Brass | A | B | d | M | S₂ |
| HY8318.33\KZJT461 | 24 | 18 | 4.2 | 6×1 | 10 |
| HY8318.33\KZJT481 | 24 | 18 | 4.2 | 8×1 | 10 |
| HY8318.33\KZJT610 | 27 | 21 | 6.2 | 10×1 | 14 |
