Product Name: Handle Seats Model Number: HY8312.2 Brand Name: Huayang Executive Standard: JB/T 7272.2-94 (GB4141.17-84) Material: Cast iron Surfaced Process: Sand-blasted / Chrome bright Place of Origin: Zhejiang, China (Mainland)
Product specification

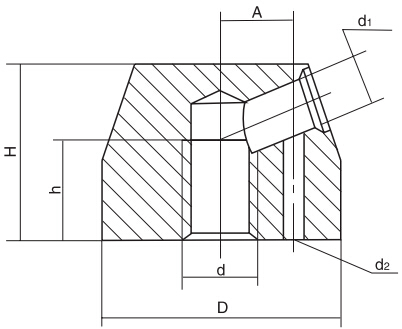

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | |||||
| Cast iron | D | H | A | d | h | d₁ | d₂ |
| HY8312.2\M12x40 | 40 | 28 | 12 | M12 | 16 | 8 | 3 |
| HY8312.2\M16x50 | 50 | 35 | 14 | M16 | 20 | 10 | 4 |
| HY8312.2\M24x70 | 70 | 50 | 22 | M24 | 32 | 12 | 5 |
