Product Name: Mushroom Type Knobs Model Number: HY8314.1 Brand Name: Huayang Executive Standard: JB\T 7274.1-94 (GB4141.26-84) Material: Bakelite、 Steel Surfaced Process: Steel（Sand-blasted/chrome bright） Place of Origin: Zhejiang, China (Mainland)
Product specification

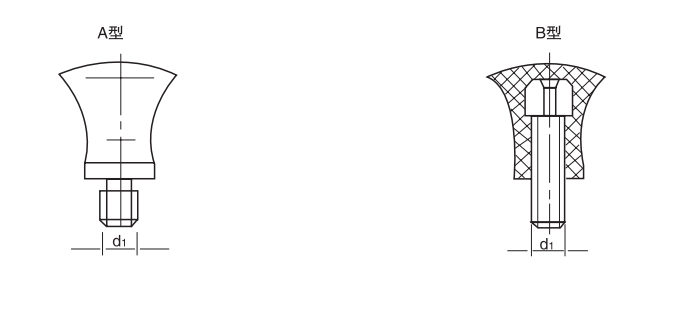

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | ||||
| Steel | Bakelite | D | L | d | d₁ | L₁ |
| HY8314.1\AM5x16 | HY8314.1\BM5x16 | 16 | 16 | 5 | M5 | 6 |
| HY8314.1\AM6x20 | HY8314.1\BM6x20 | 20 | 20 | 6 | M6 | 8 |
| HY8314.1\AM8x25 | HY8314.1\BM8x25 | 25 | 25 | 8 | M8 | 10 |
| HY8314.1\AM10x32 | HY8314.1\BM10x32 | 32 | 32 | 10 | M10 | 12 |
| HY8314.1\AM12x40 | HY8314.1\BM12x40 | 40 | 40 | 12 | M12 | 16 |
